PhoeniX Pulse Unit makes the tool more powerful.
Compared to BP T60 (equivalent in size) Increased Power by 52% (26Nm 55Nm)
PhoeniX Pulse Unit and New Motor make the tool compact.
Compared to UDBP TA70, Downsized by 47mm, Lighter by 20%
Newly developed compact & high-power DC Motor
Newly developed compact, lightweight and high power DC motor increases output and efficiency by employing high performance magnet, compared to the conventional motor.
Quick & high torque fastening is possible with small size battery by reducing the voltage required for operation and it leads to reduce the workload on the operator.
Newly developed PhoeniX Pulse Unit (PAT.P)
- Output ≥ 35% * (1)
- Preventative Maintenance ≥ 400% (10.000.000 pulse) * (2)
- Reduction of oil temperature ≥ 30% * (2)
These improvements ensure the maximum performance of electric tool. Newly developed auto relief (PAT.P) makes the fastening possible with smooth and ideal torque wave form without being affected by oil degradation.
* (1) Comparison with the conventional equivalent model.
* (2) Calculated under URYU test condition. It varies depending on the usage condition.

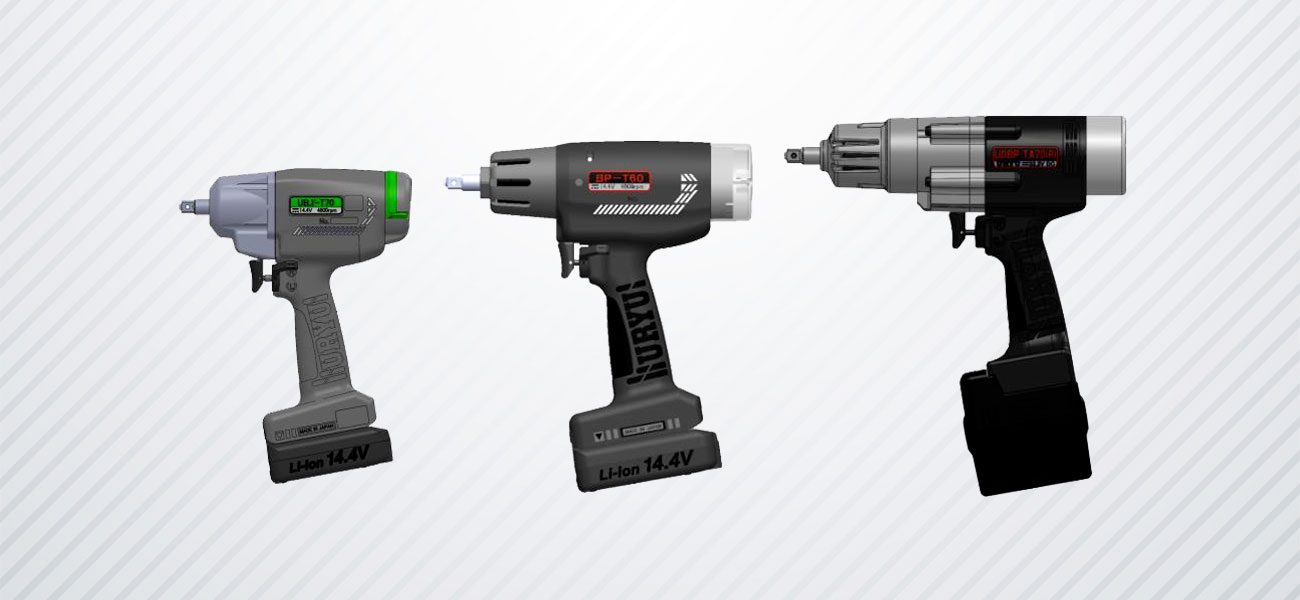

| URYU comparison chart | Model | Bolt Capacity |
Torque Range |
Free Speed |
Overall Length |
Height （w/o battery） |
Weight (w/o battery） |
Battery Voltage (Capacity) |
From Center to Outside |
SQ. Size | Fastening q’ty / min. |
Sound Level （1m） |
Vibration Value （3-axes） |
| mm | Nm | rpm | mm | mm | kg | V | mm | mm | number | dB | m/s2 | ||
| Conventional Series | UDBP-TA70 | M8～M10 | 26～47 | 4,800 | 234 | 270 （197） |
2.0 （1.39） |
33.3 (1.5Ah) |
29,5 | 9.5sq. | 5（40Nm） | 76 | 1,33 |
| BP-T60 | M8 | 13～26 | 4,800 | 202 | 241 （212） |
1.6 （1.25） |
14.4 (2.0Ah) |
27,3 | 9.5sq. | 7（21Nm） | 71 | 1,1 | |
| PhoeniX Series | UBX-T70 | M8～M12 | 25～55 | 4,800 | 187 | 242 （213） |
1.63 （1.28） |
14.4 (2.0Ah) |
27,5 | 9.5sq. | 8（40Nm） | 75 | 1,8 |
Diaphragm Shut-off Function (PAT.P)
Newly developed diaphragm increases fastening accuracy by sensing inner pressure of the pulse unit precisely. It also improves shut off failure due to dull movement of Piston caused by stuck O Ring/X Ring with the conventional series.
Clear OK / NOK Judgement Lamp (standard)
Incomplete Job Error Detection function (TK) is standardized.
Improvement of operator’s visual confirmation by LED lamp & buzzer for fastening judgement.
Powerful DC Ventilator
Effective layout for the best cooling performance in a compact design. Adopting more powerful DC ventilator contributes more jobs per minute.
UDBP-TA70: 5 jobs (40Nm)
UBX-T70: 8 jobs (40Nm)
Other features
- 14.4V battery with 2 different capacity attachable
2.0Ah : tool weight 1.63 kg (with battery)
4.2Ah : tool weight 1.86 kg (with battery)
- Fastening q’ty per full charge
battery with 2.0Ah : 250 jobs (40Nm, 0.3 sec.)
battery with 4.2Ah : 600 jobs (40Nm, 0.3 sec.)
- Ventilator
It is operated when the switch lever is ON or the temperature of thermistor on motor reaches 40 degrees.
- Heat Protection
Motor is stopped when the temperature of thermistor reaches 100 degrees or one of stator core reaches 90 degrees.
- Maintenance cycle
every 200,000 cycles : replacement of oil
every 400,000 cycles : replacement of sealing parts
(*Durability test is still ongoing, so please take this as guideline at the moment.)
